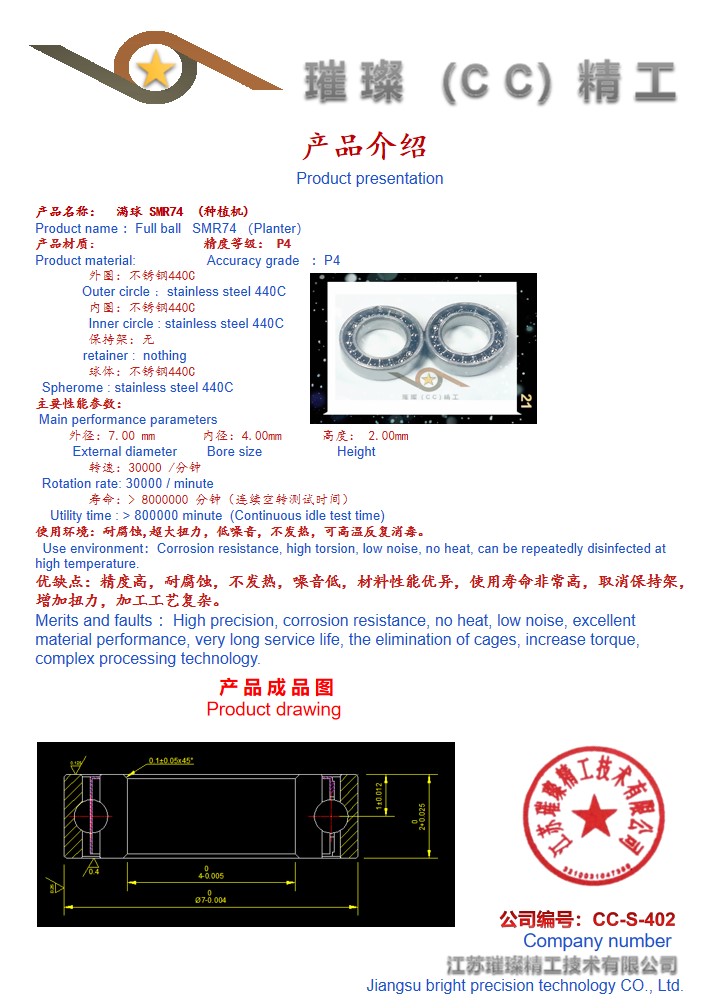

产品介绍
产品名称: 满球 SMR74 (种植机)
Product name :Full ball SMR74 (Planter)
产品材质: 精度等级: P4
Product material: Accuracy grade :P4
外圈:不锈钢440C
Outer circle : stainless steel 440C
内圈:不锈钢440C
Inner circle : stainless steel 440C
保持架:无
retainer : nothing
球体:不锈钢440C
Spherome : stainless steel 440C
主要性能参数:
Main performance parameters
外径:7.00 mm 内径:4.00mm 高度: 2.00mm
External diameter Bore size Height
转速:30000 /分钟
Rotation rate: 30000 / minute
寿命:> 8000000 分钟(连续空转测试时间)
Utility time : > 800000 minute (Continuous idle test time)
使用环境:耐腐蚀,超大扭力,低噪音,不发热,可高温反复消毒。
Use environment:Corrosion resistance, high torsion, low noise, no heat, can be repeatedly disinfected at high temperature.
优缺点:精度高,耐腐蚀,不发热,噪音低,材料性能优异,使用寿命非常高,取消保持架,增加扭力,加工工艺复杂。
Merits and faults :High precision, corrosion resistance, no heat, low noise, excellent material performance, very long service life, the elimination of cages, increase torque, complex processing technology.
