product details

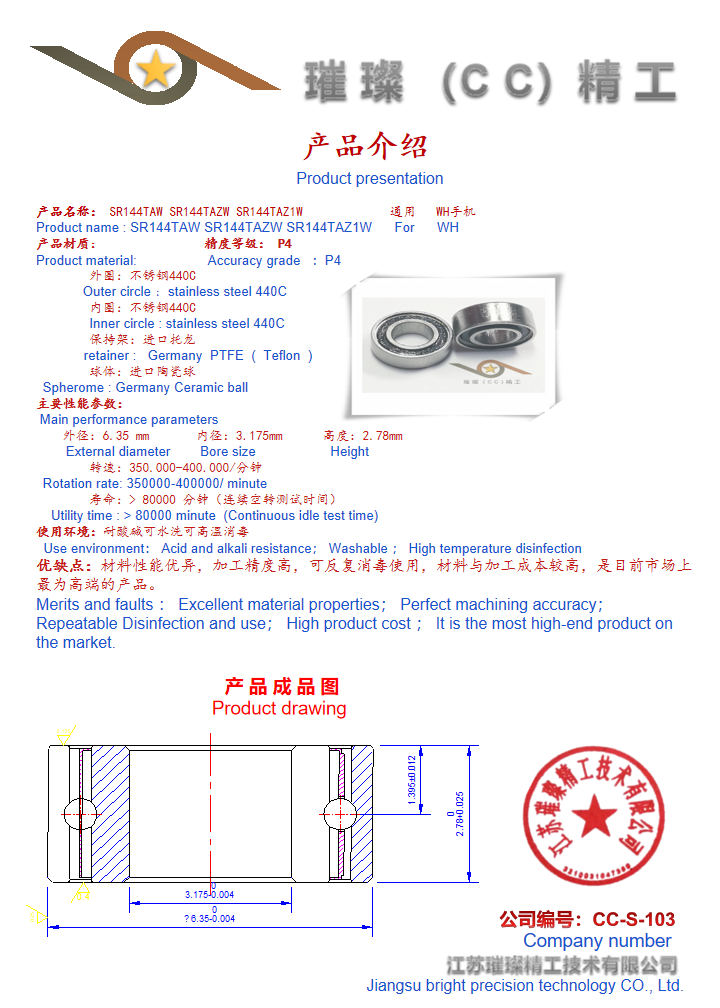

Product name : SR144TA  SR144TAW  SR144TAZ1      For   WH

Product material:                   Accuracy grade   ：P4

       Outer circle : stainless steel 440C

        Inner circle : stainless steel 440C

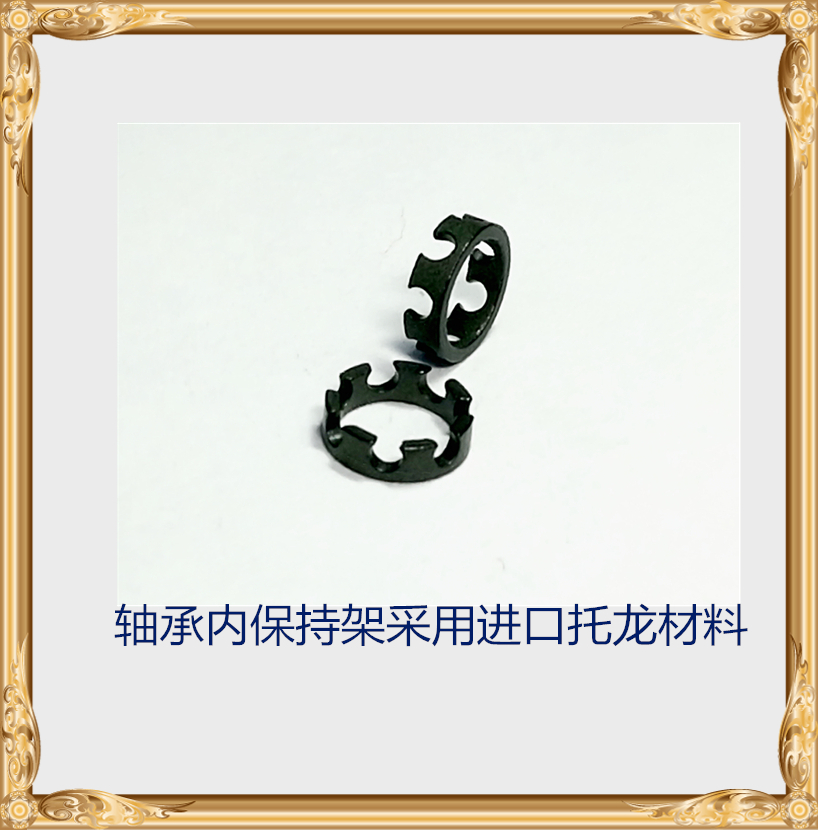

            retainer :   Germany  PTFE  (  Teflon  )

 Spherome : Germany Ceramic ball

 Main performance parameters

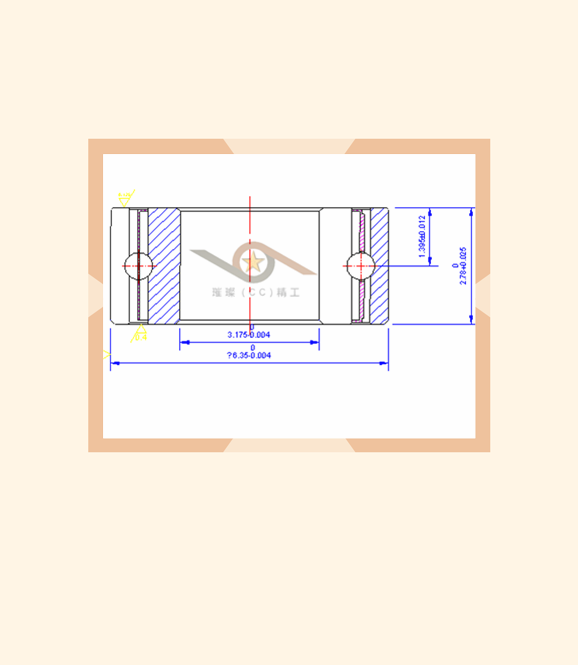

                6.35 mm               3.175mm                 2.78mm
          External diameter        Bore size                    Height

 Rotation rate: 350000-400000/ minute

    Utility time : > 45000 minute  (Continuous idle test time)

  Use environment： Acid and alkali resistance； Washable ； High temperature disinfection

Merits and faults ： Excellent material properties； Perfect machining accuracy； Repeatable Disinfection and use； High product cost ； It is the most high-end product on the market.

描述
---- WH High Speed General Bearing Class P4 (High Temperature Disinfection 180 C)

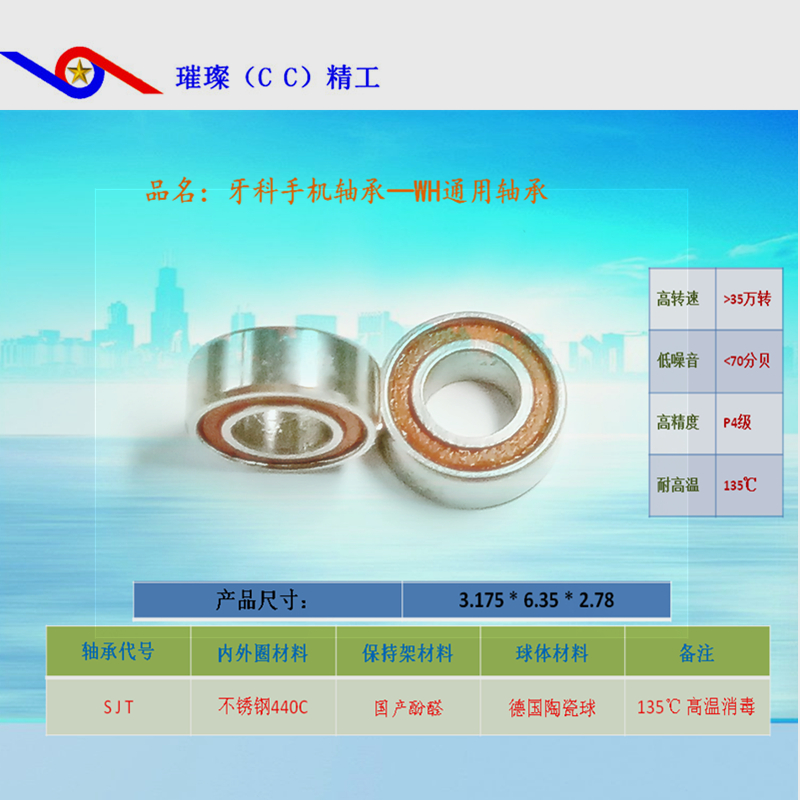

---- WH High Speed General Bearing Class P4 (High Temperature Disinfection 135C)

product details

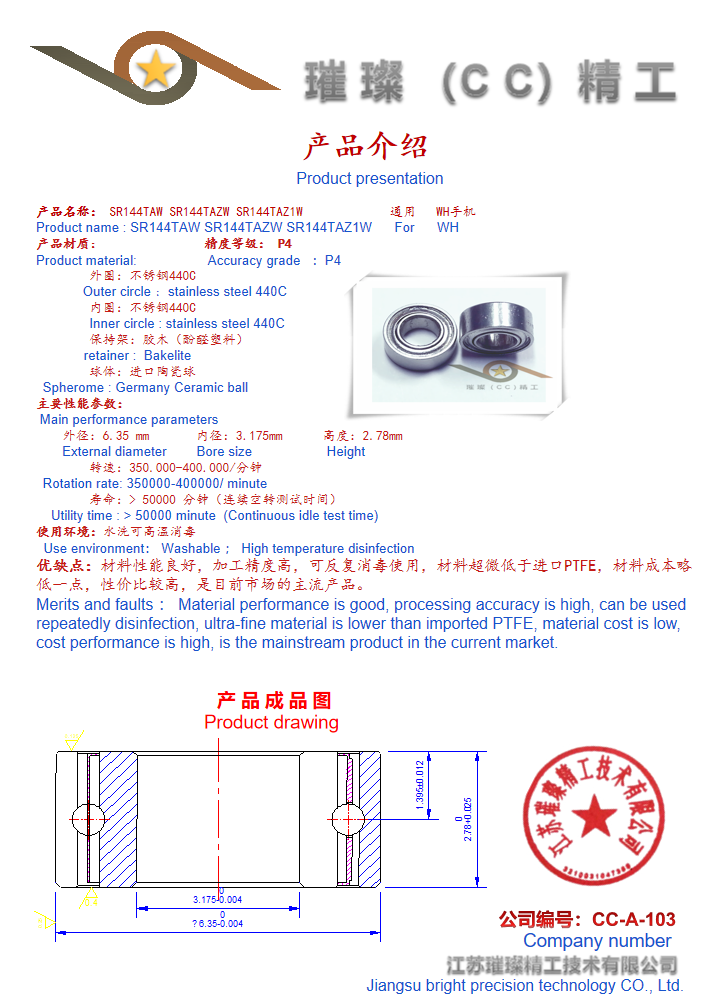

Product name : SR144TA  SR144TAW  SR144TAZ1      For   WH

Product material:                   Accuracy grade   ：P4

       Outer circle : stainless steel 440C

        Inner circle : stainless steel 440C

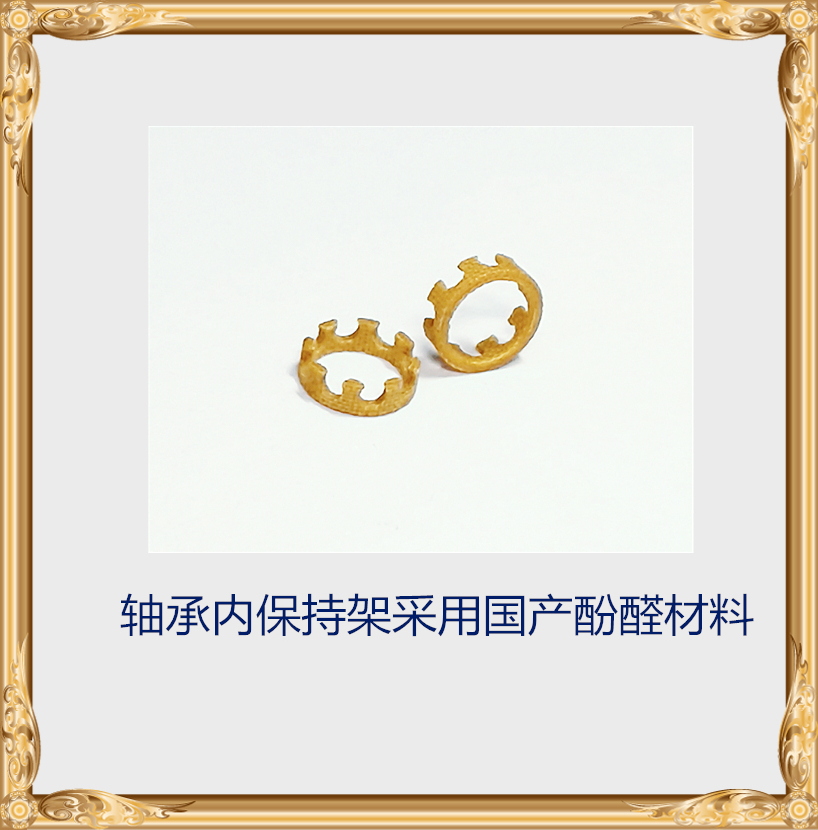

            retainer :   Bakelite

 Spherome : Germany Ceramic ball

 Main performance parameters
                6.35 mm              3.175mm                   2.78mm
          External diameter        Bore size                    Height

 Rotation rate: 350000-400000/ minute

    Utility time : > 25000 minute  (Continuous idle test time)

  Use environment： Washable ； High temperature disinfection

Merits and faults ： Material performance is good, processing accuracy is high, can be used repeatedly disinfection, ultra-fine material is lower than imported PTFE, material cost is low, cost performance is high, is the mainstream product in the current market.
